Bluefish444 IngeSTore

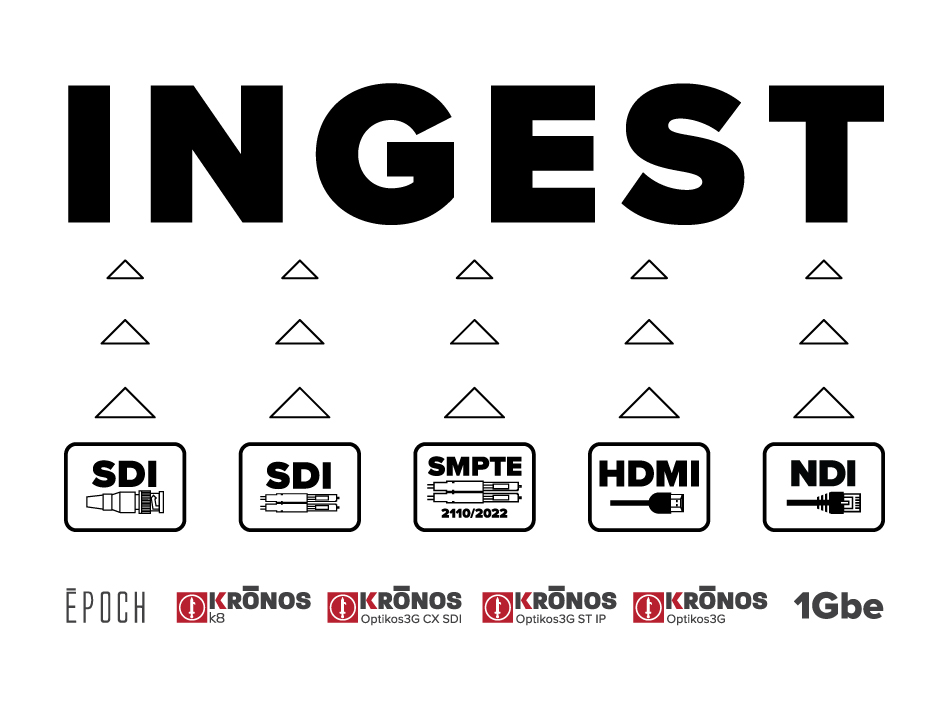

8 simultaneous and independent streams
Capture up to 8 simultaneous inputs from SDI coaxial, SDI fiber, NDI, HDMI or SMPTE 2110/2022. Each channel can capture a different resolution, frame-rate, and/or codec. All Epoch and KRONOS video cards are supported.

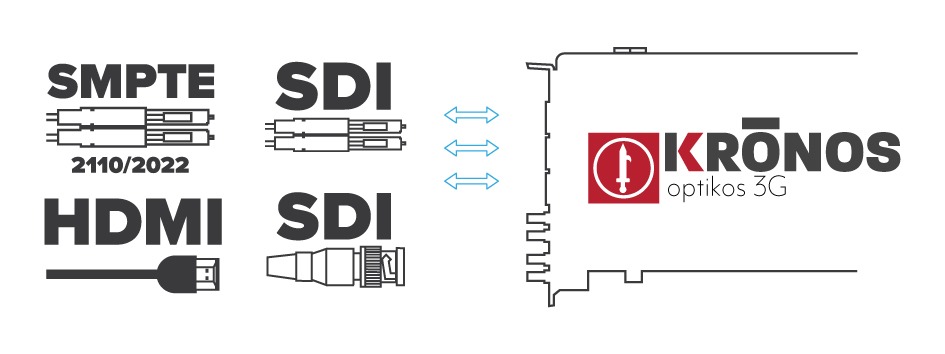

Interchangeable video interfaces
When IngeSTore is licensed to a KRONOS Optikos3G model, the video interfaces can be “hot swapped” between SDI coaxial, SDI fiber, HDMI 1.4 and SMPTE 2110/2022 using an approved SFP+ hardware module. Change the video interface, not the video card or video server.

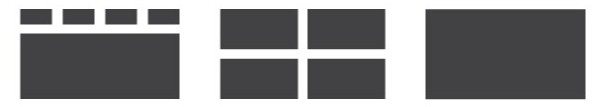

Flexible UI
Choose between three different UI settings to suit your monitoring preference.
3 record modes
IngeSTore ensures that no matter what your capture workflow, you’ll be able to do so in the easiest way possible featuring crash record, timecode in/out, and timecode auto recording triggers.
Capture from auxiliary audio and timecode sources
IngeSTore can be configured to capture audio and timecode from auxiliary sources such as LTC inputs and AES-EBU inputs. The configuration can be set per input channel of IngeSTore.
Real-time Audio Level Meter
To monitor 16 and 24 bit 48kHz audio recordings displayed in decibel bars to ensure consistent volume, prevent clipping and set your ideal recording levels.
Multiple codec options
Capture Uncompressed QuickTime, AVI and DVCPRO50/HD codecs as complementary features with the free IngeSTore 2.0 download.
Upgrade any time to a per channel license for production, archival and streaming formats.
Record direct to network shared storage, including Avid Nexis
Network-Attached Storage (including Avid Nexis video storage) is workflow compatible with IngeSTore created files, allowing all networked-connected systems to access media directly and immediately.
For a full list of supported storage options, visit the certified solutions page.
Chunk Recording
Use the Scheduler app to break long recordings up into manageable chunks of time. Or, configure IngeSTore to record chunks of files calculated in seconds of duration. All chunk recordings appear in the media bin.

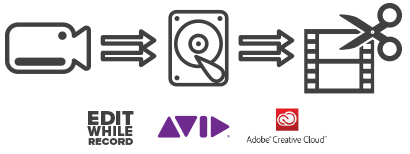

Edit-While-Record (EWR) workflow for any format
Start editing your footage in Adobe Premiere Pro or Avid Media Composer NLEs while your file is still being captured into a growing file. Multiple editors connected to network-attached storage can collaborate by accessing growing files during a live recording.
EWR is also available on a single workstation where IngeSTore records available inputs as the NLE’s timeline is displayed as SDI/HDMI outputs.
For a full description of the formats supported and the IngeSTore licences required, visit the Edit-While-Record page.

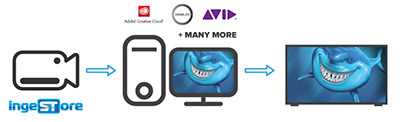

Simultaneous IngeSTore recording during content creation
All Bluefish video cards provide bi-directional BNCs and free plugs-ins to the Adobe, Assimilate and Avid suite of content creation tools, plus many more. Use the bi-directional BNCs to simultaneously acquire media with IngeSTore and external monitor as SDI/HDMI from Adobe Creative Cloud, Assimilate SCRATCH, Avid Media Composer, Avid Pro Tools and many more.
Save time by multi-tasking your ingest while you create. This workflow is not to be confused with Edit-While-Record.

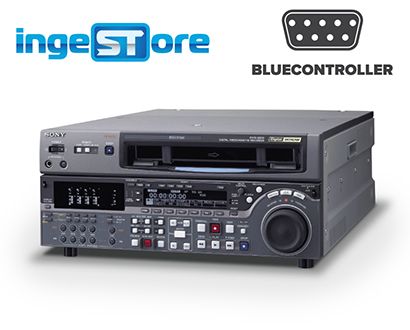

BlueController RS-422 software
The bundled BlueController RS-422 software can be used to start, stop, fast forward and rewind RS-422 devices in tandem with IngeStore.
REST API
IngeSTore supports a Rest API for external applications to control and interact with the IngeSTore capture process. The JSON REST API is a simple, easy-to-use interface allowing for external and network control integrations with all the features of the IngeSTore solution made available.
NetAccess web client
IngeStore NetAccess provides network control of one or more IngeSTore systems. Each and every feature available within the desktop IngeSTore software is made available through the HTML client and accessed through standard web browsers.
IngeSTore Scheduler web client
IngeSTore Scheduler allows for the scheduling of future recording events from a standard web browser. Scheduling can be made for a single or for recurring events all controlled remotely through a web browser. The IngeSTore Scheduler is capable of controlling multiple IngeSTore servers from a single location whether you are on-site or off-site.
Use IngeSTore Scheduler to record chunks of video via time.
Remote and collaborative workflows are now possible with IngeSTore servers located anywhere around the world.
Supported Video Formats
| (HD) 1920x1080p @ 23.98, 24, 25, 29.97, 30 fps | YES |
| (HD) 1920x1080p @ 50, 59,94, 60 fps (3G-SDI only) | YES |
| (HD) 1920x1080PsF @ 23.98, 24, 25, 29.97, 30 fps | YES |
| (HD) 1920x1080i @ 50, 59.94, 60 fps | YES |
| (HD) 1280x720p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps | YES |
| (SD) 720x576i @ 25 fps PAL | YES |
| (SD) 720x486i @ 29.97 fps NTSC | YES |
