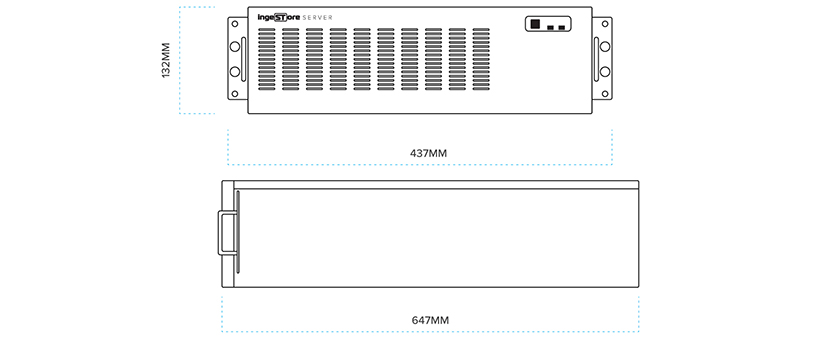

Product dimensions
| PHYSICAL DIMENSIONS |
|---|
| |
IngeSTore Server 3G |
| Height |
132mm (3RU) |
| Width (including side rails) |
437mm |
| Length |
647mm |
| Weight |
35kg |
Product specifications
| HARDWARE |
|---|
| |
IngeSTore Server 3G |
| SYSTEM |
|
| CPU |
Dual Xeon E5 |
| Cores |
20 |
| DDR memory |
64GB |
| System drive |
SSD |
| Redundant system drive |
YES |
| Power supply (94+) (with redundancy) |
YES |
| Windows 10 Pro 64-bit |
YES |
| CONNECTIVITY |
|
| RJ45 Gigabit Ethernet LAN ports |
2 |
| RJ45 dedicated IPMI LAN port |
1 |
| USB 3.0 ports |
4 |
| USB 2.0 ports |
4 |
| USB 2.0 ports (Type A) |
1 |
| Serial port (Fast UART) |
2 |
| PCIE DEVICES |
|---|
| |
IngeSTore Server 3G |
| SDI video card |
Bluefish444 Epoch | 4K Supernova S+ |
| GPU (DVI-I, DP 1.2, VGA outputs) |
Nvidia Quadro P2000 5GB |
| Network Interface Card (NIC) |
Dual Port 10Gb Ethernet SFP+ |
| VIDEO I/O |
|---|
| |
IngeSTore Server 3G |
| SDI VIDEO |
|
| SD SMPTE 295M |
4 |
| HD 1.5G SMPTE 292M |
4 |
| 3G (Level A+B) SMPTE 424M |
2 |
| VIDEO FORMATS |
|---|
| |
IngeSTore Server 3G |
| SUPPORTED YUV SDI VIDEO FORMATS |
|
| (2K) 2048x1080p/PsF @ 23.98, 24, 25, 29.97, 30 fps |
YES |
| (2K) 2048x1080P/PsF @ 48, 50, 59.94, 60 fps |
YES |
| (HD) 1920x1080p/PsF @ 23.98, 24, 25, 29.97, 30 fps |
YES |
| (HD) 1920x1080p/PsF @ 48, 50, 59.94, 60 fps |
YES |
| (HD) 1920x1080i @ 25, 29.97, 30 fps |
YES |
| (HD) 1280x720p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps |
YES |
| (SD) 720x576i @ 25 fps PAL |
YES |
| (SD) 720x486i @ 29.97 fps NTSC |
YES |
*Specifications are correct at time of printing. Specifications may change without prior notice.
