SyncVV

Seamless connection from shooting to editing SyncVV has the character of a core system that supports the workflow leading from shooting to editing. Video signals input via SMPTE ST 2022/SMPTE ST 2110/3G-SDI/HD-SDI are instantly encoded into MP4 files by SyncVV. The encoded files are shared on a NAS in the studio and can be transferred to the post-production process as soon as the take is recorded. SyncVV's open project file format also contributes to automation in post-production.

Features

• 4-channel synchronous/asynchronous SDI signal recording system SyncVV supports recording of synchronized 4-channel SDI signals as well as asynchronous 4-channel SDI signals combining different video formats. Flexible support of different video formats in a single system significantly reduces overall system cost. Input video is encoded in real time to video files in mp4 containers and immediately converted to video content usable in post-production.
• Support for automatic recording in conjunction with the Vicon system The automatic recording function linked with the Vicon system greatly reduces the operation load of the SyncVV system. Upon receiving a recording start signal from the Vicon system, SyncVV automatically acquires take information. The entire process from take registration to the start and end of recording can be fully automated. The SyncVV's Vicon system-linked automatic recording function greatly reduces the workload on site.
• Highly reliable SDI input card The SyncVV's SDI input is based on Bluefish Technologies' highly reliable KRONOS K8 and Supernova S+. The core technologies for stable, high-bandwidth performance are based on years of experience in the industry. Bluefish444's unlimited warranty and extremely low RMA rate are achieved through an industrial manufacturing process that meets the same rigorous standards required by the US military for the production of IT hardware. Assembly processes are regularly verified by government audits and are ISO 9001 certified. Professional components for professional equipment. This is one of SyncVV's core values.

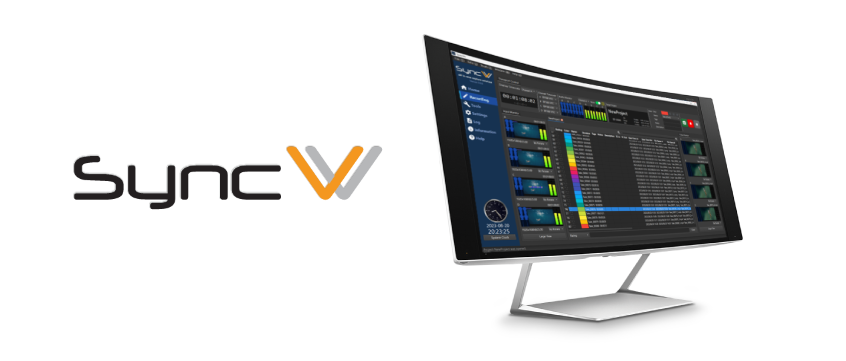

• Screen layout that is well suited to the needs of the shooting site An easy-to-understand screen layout is extremely important for shooting sites, which are hectic and require a vast amount of work. The SyncVV's intuitive screen layout was created by an engineering team that is well versed in the needs of the shooting site. The screen is black to blend in with the environment, even in dimly lit locations, and the operating components are organized and arranged according to our own standards. The left side displays inputs, the center displays previously shot material, and the right side displays thumbnails of previously shot material, making it easy to intuitively grasp the situation. This intuitive screen layout greatly reduces the workload at the shooting site.
• Equipped with a high-quality real-time encoder for professional use In a system with simultaneous input of four SDI signals, the presence of an encoder with excellent real-time performance is extremely important. The SyncVV incorporates a professional-quality real-time encoder in its core design. It combines the ability to simultaneously perform real-time encoding of four channels of video and audio in parallel while capturing baseband SDI signals over a wide bandwidth. This basic design that realizes high real-time performance and high-quality video provides powerful support for mission-critical recording operations. A new video media system has been born that connects all stages from professional video to post-production in a single system.
• Content management system for efficient management of shooting contents In a hectic scene, you want to start delivering material to the post process immediately upon completion of the day's shooting. SyncVV is equipped with a new content management system that efficiently manages shooting contents. An orthogonal, easy-to-read take list helps you see at a glance the various parameters of a take. The ability to manage each take with a color of your choice improves visibility on the recording floor, where you must operate a multitude of equipment. A number of unique ergonomic features ensure smooth operation right from the start.
