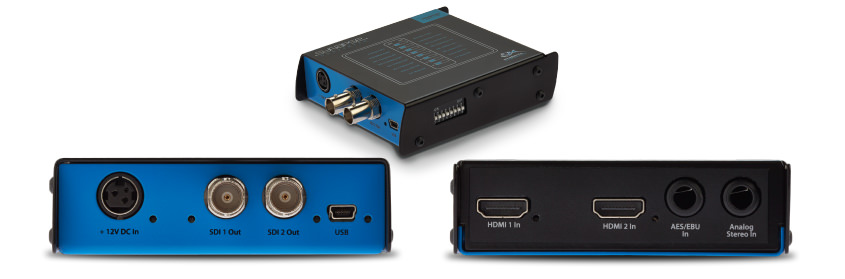

Synapse HDMI120
Synapse HDMI120 features
HDMI to SDI converter
Synapse HDMI120 conversions from HDMI to 3G/HD/SD-SDI include video scaling and PsF mode, configured via DIP switches on the side of the converter. The 3G/HD/SD-SDI output signal is simultaneously displayed to 2 3G/HD/SD-SDI connections, allowing monitoring of recorded signals. A second HDMI input is provided for redundancy, providing a fail-safe mechanism should an input be lost. An on-screen display utility provides status information about the configuration settings of the converter, and an embedded pattern generator is available to calibrate 3rd-party monitors.
|
|
HDMI120 |
|
Video/audio INPUT |
HDMI 1.3 |
|
Video/audio OUTPUT |
3G/HD/SD-SDI |
|
Audio INPUT |
Embedded HDMI/AES/ANA |
|
Audio OUTPUT |
Embedded SDI |
| 2nd copy OUTPUT | SDI 2 |
| 2nd fail-safe INPUT | HDMI 2 |
| SDI loop OUTPUT | N/A |
| Downconverter | YES |
| On-screen status | YES |
| Deinterface | N/A |
| PsF mode | YES |
Click here to compare Synapse Converters.

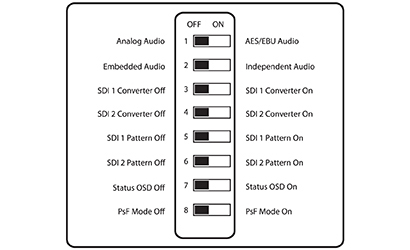

Feature packed & easy to use
HDMI120 converters are controlled by easily accessible DIP switches on the side of the converter, allowing conversion of HDMI signals to a range of SDI. Convert in real time from HDMI video/audio with embedded audio to 3G/HD/SD SDI video complete with embedded audio.

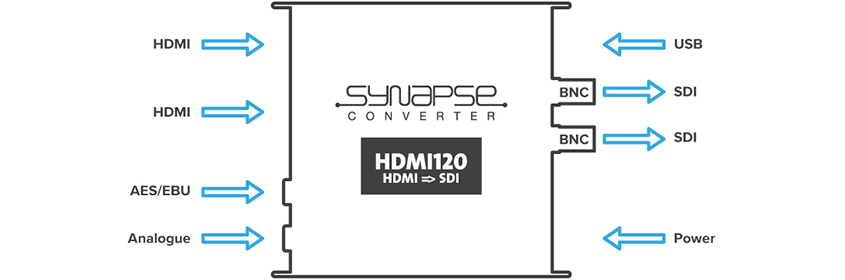

Maximum connectivity
HDMI120 provides a wealth of connectivity, allowing HDMI video and audio signals to be converted to a range of SDI.
- HDMI Input with 8 channels of embedded audio
- Second HDMI Input for redundancy
- 3G/HD/SD-SDI Output
- AES digital stereo audio input
- Analogue stereo audio input

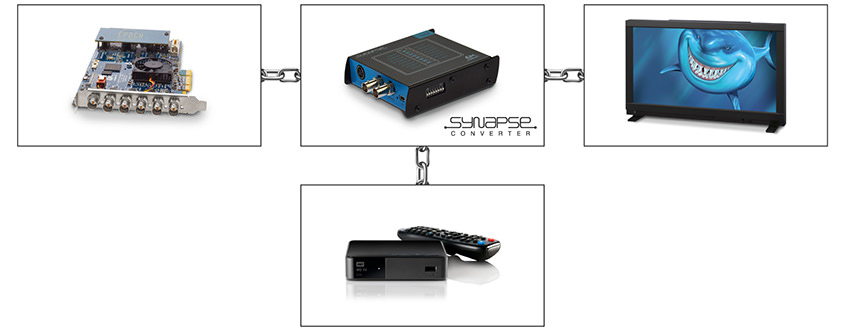

Complete the hardware workflow chain
If you are one of Bluefish444’s 20,000+ installed customers, you no longer have to use a 3rd-party manufacturer’s converter in your Bluefish444 uncompressed SDI workflow. Bluefish444 now offers stand-alone Synapse Converters designed and manufactured to the same exacting standards as our world-renowned uncompressed SDI video cards.
