Synapse HDMI120

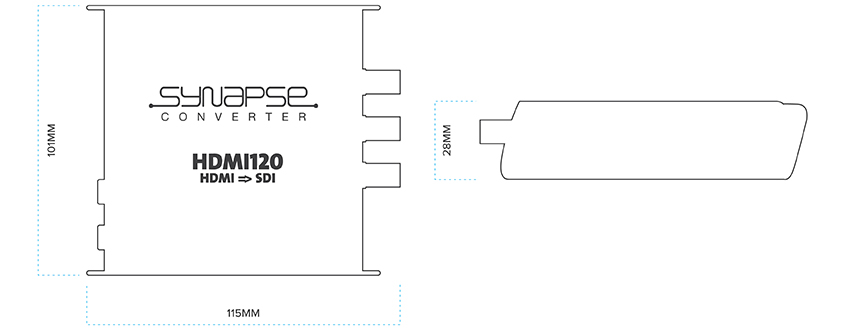

Product dimensions
Product specifications
| VIDEO I/O | |
|---|---|
| HDMI120 | |
| Video input | |
| HDMI 1.3 | YES |
| Video output | |
| SD-SDI SMPTE 295M | YES |
| HD-SDI 1.5G SMPTE 292M | YES |
| 3G-SDI (Level A) SMPTE 424M | YES |
| AUDIO I/O | |
|---|---|
| HDMI120 | |
| Audio input | |
| HDMI 1.3 | YES |
| Stereo AES/EBU audio | YES |
| Stereo analogue audio (unbalanced) | YES |
| Audio output | |
| SD-SDI SMPTE 295M | YES |
| HD-SDI 1.5G SMPTE 292M | YES |
| 3G-SDI (Level A) SMPTE 424M | YES |
| HARDWARE | |
|---|---|
| HDMI120 | |
| Major hardware features | |
| Downscaling | YES |
| Progressive to PsF | YES |
| Lockable power supply | YES |
| Auto adaption 3G/HD/SD | YES |
| Test pattern generator | YES |
| Status LEDs | YES |
| On-screen display | YES |
| Firmware upgrade through USB | YES |
| VIDEO FORMATS | |
|---|---|
| HDMI120 | |
| Supported YUV SDI Video Modes | |
| (HD) 1920x1080p/PsF @ 50, 59.94, 60 fps | YES |
| (HD) 1920x1080p/PsF @ 23.98, 24, 25, 29.97, 30 fps | YES |
| (HD) 1920x1080i @ 25, 29.97, 30 fps | YES |
| (HD) 1280x720p @ 50, 59.94, 60 fps | YES |
| (SD) 720x576i @ 25 fps PAL | YES |
| (SD) 720x486i @ 29.97 fps NTSC | YES |
| Supported analogue video modes | |
| (HD) 1920x1080p/PsF @ 50, 59.94, 60 fps | YES |
| (HD) 1920x1080p/PsF @ 23.98, 24, 25, 29.97, 30 fps | YES |
| (HD) 1920x1080i @ 25, 29.97, 30 fps | YES |
| (HD) 1280x720p @ 50, 59.94, 60 fps | YES |
| (SD) 720x576i/p @ 25 fps PAL | YES |
| (SD) 720x486i/p @ 29.97 fps NTSC | YES |
| Progressive to PsF | |
| 1080p50/60 to 1080PsF50/60 | YES |
| 1080p24 to 1080PsF24 | YES |
| Downconversion | |
| 1080p50/60 to 720p50/60 | YES |
| 1080i29/30 to 486i29/30 | YES |
| 1080i25 to 576i25 | YES |
| 720p50 to 576i25 | YES |
| 720p59/60 to 486i29.30 | YES |
