SDI Coax, SDI Fiber and HDMI SFP+ hardware modules can be hot swapped in and out of the KRONOS Optikos3G ST IP video card without requiring a firmware, driver, software update, change of video card or change of video server. Changing the video interface is as simple as hot swapping the SFP+ hardware module saving on the capex cost of purchasing a fixed video interface server.
Hot swapping SFP+ hardware modules to change the video interface is a far more cost efficient process than purchasing a new turnkey video server.
3 x SMPTE IP hardware modules have been loaded into OPTIKOS3G ST IP video card supporting 6 x 2110/2022 transmit (TX) or receive (RX) of HD-3G video modes.
Each SMTE IP module supports 2022-6/7 and 2110-20/30/40 10Gb Multimode Fiber.
Features Per SMPTE IP Module | |
SMPTE 2022-6/7 10Gb Multimode Fiber | YES |
SMPTE 2110 - 20/30/40 10Gb Multimode Fiber | YES |
4K Video Modes | NO |
HD-3G Video Modes | YES |
Single/Dual Stream Receive (RX) | YES |
Single/Dual Stream Transmit (TX) | YES |
Single Stream Receive (RX) & Transmit (TX) | NO |
PTP ST 2059-1 SMPTE 2110 Locking | YES |
NMOS, Ember+, Rest API | YES |
Web Client - EM/MN-Set | YES |
Clean switching can be used on a receiver to switch between two sources on the same network without any visible/audible interruption.
A Frame Sync license is available to lock 2110 TX streams when the KRONOS Optikos3G ST IP cannot be locked to a common reference source already locked to the network PTP timing.
Additional 1 Channel SMPTE 2022-6 and STMPTE 2110 TX and RX licenses can be added to each SMPTE IP module optionally. Only 1 license at any time can run live.
Additional 2 Channel SMPTE 2022-6 and STMPTE 2110 TX and RX licenses can be added to each SMPTE IP module optionally. Only 1 license at any time can run live.
See all the SMPTE IP options for configuring the KRONOS Optikos3G ST IP on the live configurator here.
The SMPTE IP hardware modules can be configured and controlled the following ways, all of which are in-band configuration;
A maximum of 3 x SDI Coax hardware modules can be loaded per OPTIKOS3G ST IP video card.
SDI Coax modules support via HDBNC 2 x 3G SDI capture, 2 x 3G SDI playout or 1in/1out 3G SDI. All modules are re-clocked.
Modules | |
Minimum Number of SDI Coax modules per Optikos3G ST IP | 1 |
Maximum Number SDI Coax modules per Optikos3G ST IP | 3 |
Streams | |
Minimum Number of SDI Coax Streams per Optikos3G ST IP | 2 |
Maximum Number of SDI Coax Streams per Optikos3G ST IP (6 x SDI SFP+ & 2 via 3G BNC) | 8 |
Features Per SDI Coax Module | |
SD SMPTE 295M | YES |
HD 1.5G SMPTE 292M | YES |
3G (Level A+B) SMPTE 424M | YES |
Dual Link 1.5G SMPTE 372M | YES |
Dual Link 3G | YES |
4K 50/60p Quad 3G SDI | YES |
12/10/8 bit 4:4:4:4 SDI | YES |
12/10/8 bit 4:2:2:4 SDI | YES |
HDBNC | YES |
Recloked | YES |
2IN, 2OUT, 1IN&1OUT | YES |
See all the SDI Coax options for configuring the KRONOS Optikos3G ST IP in the live configurator here.
A maximum of 3 x SDI Fiber hardware modules can be loaded per OPTIKOS3G ST IP video card.

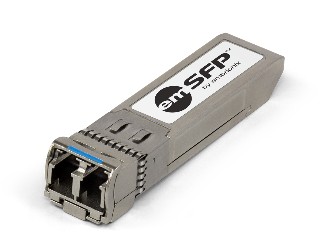

SDI Fiber modules support via Singlemode Fiber for 2 x 3G SDI capture, 2 x 3G SDI playout or 1in/1out 3G SDI.
Modules | |
Minimum Number of SDI Fiber modules per Optikos3G ST IP | 1 |
Maximum Number SDI Fiber modules per Optikos3G ST IP | 3 |
Streams | |
Minimum Number of SDI Fiber Streams per Optikos3G ST IP | 2 |
Maximum Number of SDI Fiber Streams per Optikos3G ST IP | 6 |
Features Per SDI Fiber Module | |
SD SMPTE 295M | YES |
HD 1.5G SMPTE 292M | YES |
3G (Level A+B) SMPTE 424M | YES |
Dual Link 1.5G SMPTE 372M | YES |
Dual Link 3G | YES |
4K 50/60p Quad 3G SDI | YES |
12/10/8 bit 4:4:4:4 SDI | YES |
12/10/8 bit 4:2:2:4 SDI | YES |
SingleMode Fiber | YES |
2IN, 2OUT, 1IN&1OUT | YES |
See all the SDI Fiber options for configuring the KRONOS Optikos3G ST IP in the live configurator here.
A maximum of 3 x HDMI hardware modules can be loaded per OPTIKOS3G ST IP video card.
The HDMI modules support 1.4a Type D, 1 channel in or 1 channel out per SFP+ hardware module for a maximum number of 3 x HDMI 1.4a channels as 2in/1 out or 1in/2out. Each module comes with a locking cable.
See all the HDMI options for configuring the KRONOS Optikos3G ST IP in the live configurator here.
All qualified KRONOS Optikos 3G ST IP SFP+ hardware modules can be downloaded here in PDF form here.
