Bluefish444 IngeSTore

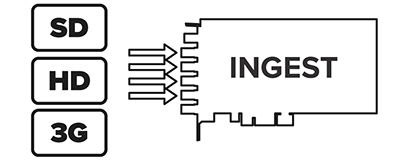

4 simultaneous and independent streams

IngeSTore. 4 Simultaneous and Independent Streams.

Capture multiple inputs from a range of 3G/HD/SD-SDI sources. Each channel can capture a different resolution, frame-rate, and/or codec.



3 record modes

IngeSTore. 3 Record Modes.

IngeSTore ensures that no matter what your capture workflow, you’ll be able to do so in the easiest way possible featuring crash record, timecode in/out, and timecode auto recording triggers.



Capture from auxiliary audio and timecode sources

IngeSTore. Capture from auxiliary audio and timecode sources

IngeSTore can be configured to capture audio and timecode from auxiliary sources such as LTC inputs and AES-EBU inputs. The configuration can be set per input channel of IngeSTore.



Multiple codec options

IngeSTore. Multiple codec options

Capture Uncompressed QuickTime, AVI and DVCPRO50/HD codecs as complementary features with the free IngeSTore download. Upgrade to any one of the three optional software codec licences at any time.



LICENCE MOV MXF (OP-ATOM) MXF (OP-1A) MXF (SONY) MP4 AVI
Uncompressed 2VUY/V210 FREE YES NO YES NO NO NO
DVCPRO50 25/50 FREE YES NO NO NO NO NO
DVCPRO HD FREE YES NO YES NO NO NO
Uncompressed BGR/BGRA FREE NO NO NO NO NO YES
DNxHD 8-bit Avid DNxHD NO YES NO NO NO NO
DNxHD 10/8-bit BlueCodecPack YES YES NO NO NO NO
ProRes/ProRes 422 BlueCodecPack YES NO NO NO NO NO
H.264 BlueCodecPack NO NO NO NO YES NO
AVC-Intra BlueCodecPack YES NO YES NO NO NO
Sony XDCAM 422 50Mb BlueCodecPack NO NO NO YES NO NO
JPEG2000 2VUY/V210 BlueCodecPack +JPEG2K NO NO YES NO NO NO

IngeSTore software and codecs can be evaluated at any time with the free download of IngeSTore. Licence-restricted codec options will be recorded with a watermark.

All IngeSTore licences are available to purchase from the Bluefish444 Shop.



Record direct to network shared storage, including Avid Nexis

IngeSTore. Record direct to network shared storage, including Avid Nexis.

Network-Attached Storage (including Avid Nexis video storage) is workflow compatible with IngeSTore created files, allowing all networked-connected systems to access media directly and immediately.

For a full list of supported storage options, visit the certified solutions page.

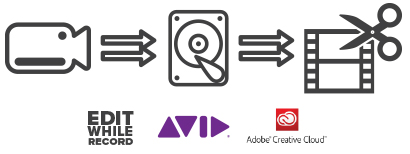

Edit-While-Record (EWR) workflow for any format

IngeSTore. Edit-While-Record (EWR) workflow for any format.

Start editing your footage in Adobe Premiere Pro or Avid Media Composer NLEs while your file is still being captured into a growing file. Multiple editors connected to network-attached storage can collaborate by accessing growing files during a live recording.

EWR is also available on a single workstation where IngeSTore records available inputs as the NLE’s timeline is displayed as SDI/HDMI outputs.

For a full description of the formats supported and the IngeSTore licences required, visit the Edit-While-Record page.

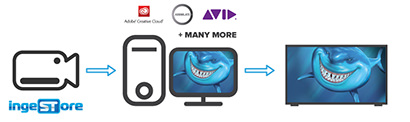

Simultaneous IngeSTore recording during content creation

IngeSTore. Simultaneous IngeSTore recording during content creation.

All Bluefish video cards provide bi-directional BNCs and free plugs-ins to the Adobe, Assimilate and Avid suite of content creation tools, plus many more. Use the bi-directional BNCs to simultaneously acquire media with IngeSTore and external monitor as SDI/HDMI from Adobe Creative Cloud, Assimilate SCRATCH, Avid Media Composer, Avid Pro Tools and many more.

Save time by multi-tasking your ingest while you create. This workflow is not to be confused with Edit-While-Record.

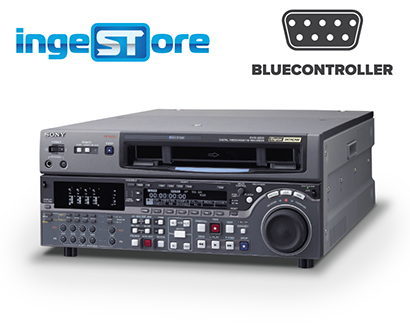

BlueController RS-422 software

IngeSTore. BlueController RS-422 software.

The bundled BlueController RS-422 software can be used to start, stop, fast forward and rewind RS-422 devices in tandem with IngeStore.



REST API

IngeSTore. REST API.

IngeSTore supports a Rest API for external applications to control and interact with the IngeSTore capture process. The JSON REST API is a simple, easy-to-use interface allowing for external and network control integrations with all the features of the IngeSTore solution made available.

Find out more about REST API here.



NetAccess web client

IngeSTore. NetAccess web client.

IngeStore NetAccess provides network control of one or more IngeSTore systems. Each and every feature available within the desktop IngeSTore software is made available through the HTML client and accessed through standard web browsers.

Find out more about NetAccess here.



Libero Scheduler web client

IngeSTore. Libero Scheduler web client.

IngeSTore Libero Scheduler allows for the scheduling of future recording events from a standard web browser. Scheduling can be made for a single or for recurring events all controlled remotely through a web browser. The Libero Scheduler is capable of controlling multiple IngeSTore servers from a single location whether you are on-site or off-site.

Remote and collaborative workflows are now possible with IngeSTore servers located anywhere around the world.

Find out more about Libero Scheduler here.



Supported Video Formats

(HD) 1920x1080p @ 23.98, 24, 25, 29.97, 30 fps YES
(HD) 1920x1080p @ 50, 59,94, 60 fps (3G-SDI only) YES
(HD) 1920x1080PsF @ 23.98, 24, 25, 29.97, 30 fps YES
(HD) 1920x1080i @ 50, 59.94, 60 fps YES
(HD) 1280x720p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps YES
(SD) 720x576i @ 25 fps PAL YES
(SD) 720x486i @ 29.97 fps NTSC YES
